Amphibious UAV580
Efficient Operations: Capable of executing long-duration, long-range missions with minimized interruptions for resupply, significantly enhancing work efficiency.
Water & Land Versatility: Features exceptional waterproofing performance, enabling reliable takeoff and landing on water surfaces while maintaining stable operation in complex aquatic and terrestrial environments.
Robust Payload Capacity: Boasts substantial load-bearing capability coupled with high-precision positioning and stable hovering performance, ensuring accurate delivery of equipment for diverse task requirements.
Applications:
|
|
|
|
Core Features:
Advanced Quad-Sensor Gimbal System: long-range laser rangefinder Combined with a three-axis stabilized gimbal, this system ensures exceptionally clear and vibration-free imaging while capturing precise target data under complex conditions. | Reliable Amphibious Performance: The drone and its gimbal pod feature IP67-rated waterproofing, enabling seamless water-surface takeoff/landing operations. All core functions remain fully operational across challenging aquatic and terrestrial environments, expanding mission versatility. |
High-Performance Remote Control Suite: Equipped with a large high-brightness HD touchscreen (1000cd/m²), the controller offers 8-hour endurance, 256GB expandable storage, and 30km transmission range. Its ergonomic design delivers intuitive command execution and real-time situational awareness. | Precision Positioning & Flight Stability: Leveraging single Beidou satellite navigation with RTK differential correction, achieves ±1cm vertical/horizontal hovering accuracy. The aircraft maintains rock-solid stability in 12m/s wind gusts, guaranteeing mission integrity and operational safety. |
Product Specifications:
Dimensions: ≤460×460×30 cm (folded) Wheelbase: ≤580 mm Flight Endurance: ≥60 min (standard payload) Control Range: ≥20 km (FCC compliant) Wind Resistance: Operable up to Level 8 wind (≥8 m/s sustained) Payload Capacity: ≥5 kg (maximum takeoff weight) Waterproof Rating: IP66 (drone body) / IP67 (gimbal pod) | Max Speed: ≥18 m/s (Sport Mode) Hovering Accuracy: Vertical ±0.5m / Horizontal ±1.5m (GNSS-optimized) Positioning Module: Single-Constellation Beidou with RTK differential correction Amphibious Capability: Fully functional water operations including surface takeoff/landing Battery Configuration: 29.6V nominal voltage (8S LiPo) Cell Count: Minimum 8 series-connected lithium polymer cells |

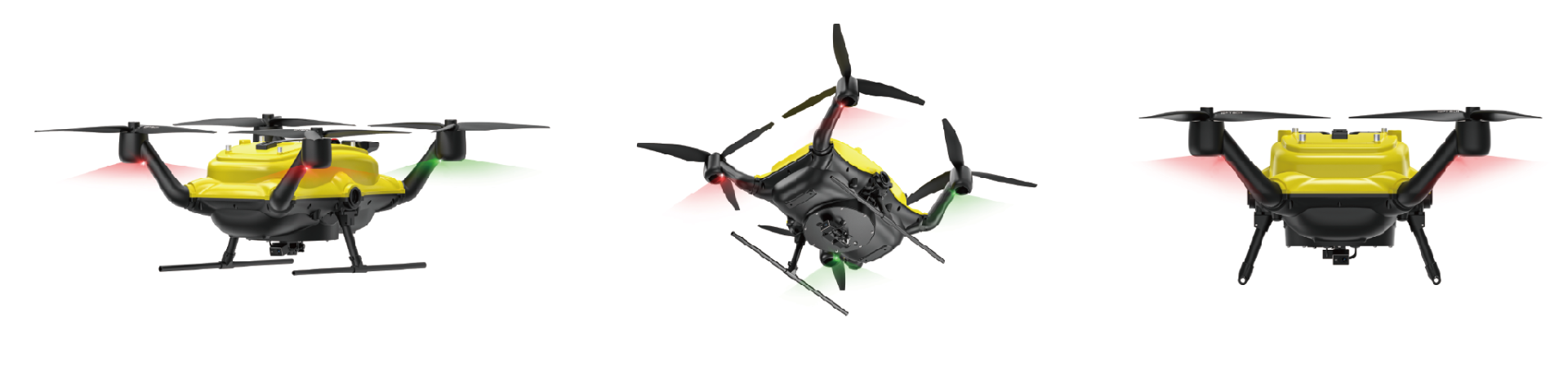

Product Images:
